電腦程式螺旋輸送隔氧蒸氣乾燥設備(報價)
Computer program screw conveyor oxygen vapor drying equipment (quote)
產量規格要求 : 24小時乾燥20噸生椰蓉，水份要求含3%內，不能焦化，變色。
Production specifications: 20 tons of dried coconut milk in 24 hours, the water content is required to contain 3%, can not be coking, discoloration.
廠商自備 : 鍋爐(週邊相關物件設備及配管等等事宜) 蒸氣壓力12kg，溫度180度， 技術操作供給。
Manufacturer's own: Boiler (peripheral related equipment and piping, etc.) Vapor pressure 12kg, temperature 180 degrees, technical operation supply.
1.專案技術特性功能效益述介 : 內管軸螺旋輸送蒸氣溫度導熱中管軸螺旋輸送生椰蓉利用輸送螺旋翻滾椰蓉受熱乾燥均勻並用鼓風機抽水氣排出隔氧乾燥椰蓉不受外界(環境空氣傳播有害物質污染椰蓉) 外管無包覆保溫材並讓管內自然散熱椰蓉水氣調解受熱。
Project technical characteristics Functional benefits: Inner tube shaft spiral conveying steam temperature heat conduction tube axis spiral conveying raw coconut using conveying screw tumbling coconut heat drying evenly and using blower pumping air to discharge oxygen-free dry coconut free from the outside (environmental airborne harmful substances pollution Coconut) The outer tube is covered with heat-insulating material and allows the natural cooling of the coconut water to regulate the heat.

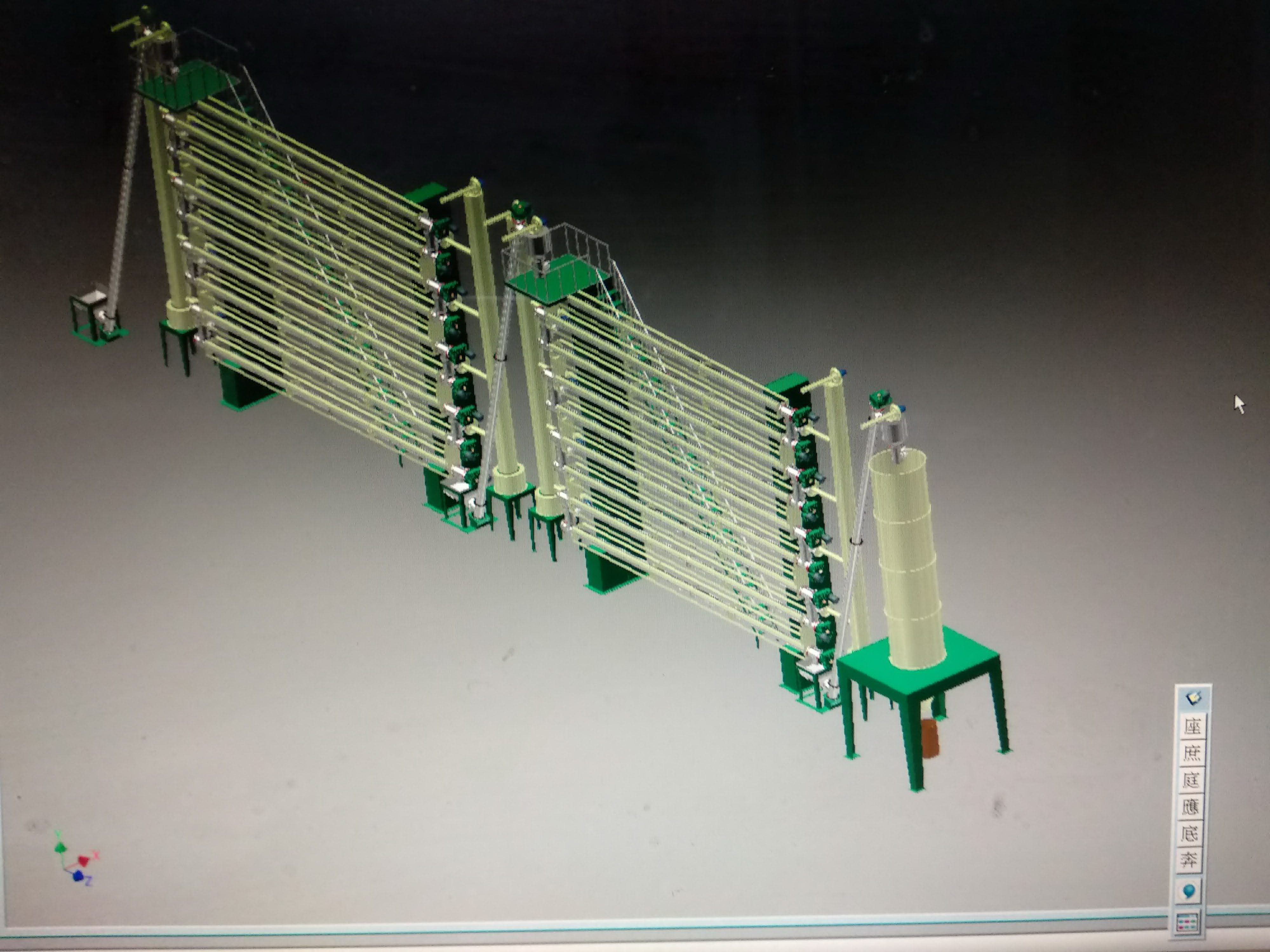

2. 電腦程式螺旋輸送隔氧蒸氣乾燥設備(180米螺旋輸送隔氧蒸氣乾燥圖面尺寸)
Computer program spiral conveying oxygen storage steam drying equipment (180 meters 糎 spiral conveying oxygen vapor drying surface size)
3.電腦程式螺旋輸送控制管理自動化設定生產品質標準規範
項目
輸送馬達 1~22 顆 皆可以調整 速度
抽風馬達 1~20 顆 皆可以調整 速度
濕度計 1 ~22個
料位計 1~24 個
方形料桶 3 個
大料桶 1 個
中料桶 3 個
小料桶 1~21 個
雙組合整套90米螺旋密封蒸氣乾燥輸送自動化
動作流程 如下
方形料桶1 安裝 濕度計 測試起始 濕度含水量 再經由 輸送馬達1，
輸送到 中料桶 1，裡面有 濕度計2 及 料位計1 小料桶1如滿 輸送馬達1 停止輸送，此時 輸送馬達2啟動 開始往 小料桶2 輸送原料及真空抽水分，
經輸送到 小料桶3 裡面有 料位計2及 濕度計2測濕度含水量原料滿後
輸送馬達3 啟動 ，往 小料桶4 輸送 以此類推下到 方形料桶 2
方形料桶2料位滿後 ，上方輸送馬達 輸送到 中料桶2 重複著動作
到 方形料桶 3 ， 方形桶 3 料位滿了 輸送到 中料位桶 及 大料位桶
大料位桶 分4個料位計 分別區分 存放量 ，大料位桶 下方有落料馬達
裝成品 ．
Computer program spiral conveyor control management automation set production quality standard specification
Project
1~22 conveyor motors can be adjusted
1~20 air extracting motors can be adjusted
Hygrometer 1 ~ 22
Level gauge 1~24
Square bucket 3
Large bucket 1
Medium bucket 3
Small buckets 1~21
Double combination complete 90m spiral seal steam drying conveying automation
The action flow is as follows
Square bucket 1 installation hygrometer test start humidity moisture content via conveyor motor 1,
Conveyed to the middle barrel 1, there is a hygrometer 2 and a level gauge 1 small barrel 1 is full. The conveying motor 1 stops conveying. At this time, the conveying motor 2 starts to feed the raw material to the small tank 2 and vacuums the water.
After being transported to the small bucket 3, there is a level gauge 2 and a hygrometer 2 to measure the moisture content.
The conveyor motor 3 is started, transported to the small tank 4, and so on to the square bucket 2
After the square barrel 2 is full, the upper conveying motor is transported to the middle barrel 2 and repeats the action.
To the square bucket 3 , the square bucket 3 is full of material and is transported to the middle level bucket and the large level bucket
Large level buckets are divided into 4 level gauges to separate the storage capacity. 、There is a blanking motor below the large level bucket.
Finished product.
4.材質規範種類 : 內管軸螺旋輸送蒸氣溫度導熱中管軸螺旋輸送生椰蓉利用輸送螺旋翻滾椰蓉受熱乾燥外管無包覆保溫材並讓管內自然散熱椰蓉水氣調解受熱。不鏽鋼管無縫316固定化型材質。存備桶槽及相關配件接觸椰蓉均採用不鏽鋼304材質。機架結構中碳鋼板雷射切割折型銲接噴漆。
Material specification type: Inner tube shaft spiral conveying steam temperature heat conduction tube shaft spiral conveying raw coconut using conveying spiral tumbling coconut heat-dried outer tube without covering insulation material and allowing the natural cooling inside the tube to regulate the heat of the coconut water. Stainless steel tube seamless 316 fixed material. The storage tank and the related accessories contact coconut are made of stainless steel 304. Carbon steel plate laser cutting and folding welding spray paint in the frame structure.
5. 製造流程進度規範日期240天完成及付款方式 :
A. 本報價單依圖預估，簽約確定電匯出差費用到生產廠察觀現場討論(鍋爐專業人員、電腦程式電器專業人員、製造設計專業人員) 翻譯人員貴公司自備。經雙方討論整套生產設備自動化流程規化相關配備是否增加及扣除。重新修改設計報價。
B. 簽約確定整套生產設備自動化流程規化相關配備價格。製造商收入電淮50%訂金，拆圖發包採購製造180天組裝20天，試車整套生產設備自動化流程規化相關配備10天，貴廠人員製造廠驗收操作確定5天，貴廠5天內電淮40%貨款製造商折機裝櫃20天完成封櫃按排船期，FOB台灣碼頭出貨貴廠5天內電淮10%貨款。
5. Manufacturing process progress specification date 240 days to complete and payment method:
A. This quotation is estimated according to the plan, signing the contract to determine the wire transfer travel expenses to the production plant to observe the on-site discussion (boiler professionals, computer program electrical professionals, manufacturing design professionals). The translators are provided by the company. After the two parties discussed whether the complete set of production equipment automation process regulation related equipment is increased and deducted. Revise the design quote.
B. Signing the contract to determine the price of the relevant equipment for the automation of the entire production equipment. The manufacturer's income is 50% of the deposit, and the assembly and purchase of the package is 180 days for 20 days. The test kit is equipped with 10 days for the automatic process planning of the production equipment. The inspection and acceptance operation of the factory personnel is determined for 5 days. Huai 40% of the goods manufacturer folding machine for 20 days to complete the sealing according to the shipping schedule, FOB Taiwan terminal shipped your factory within 5 days of electricity 10% of the purchase price.
6. 貴廠領貨進廠拆櫃組裝試車及生產，電腦程式螺旋輸送隔氧蒸氣乾燥設備製造廠商，全配合貴廠按排支援完成任務人員出差費用由貴廠支附。
Your factory picks up the goods into the factory to disassemble the assembly test and production, computer program spiral transport oxygen storage steam drying equipment manufacturer, all with your factory according to the row support to complete the mission personnel travel expenses are supported by your factory.
7. 電腦程式螺旋輸送隔氧蒸氣乾燥設備(報價) FOB台灣碼頭出貨
總價格美金$。
Computer program screw conveyor oxygen vapor drying equipment (quote) FOB Taiwan terminal shipping
The total price is US$*.
重億興業股份有限公司 盧再傳 2018/7/5
